24V 30A Battery Charger Forklift Battery Charger Fully Automatic Smart Chargr J3



EM160 24V Smart Fast Charger is a fully-Automatic Smart Charger that can charge 24V and 200AH-300AH lead-acid batteries. The whole process only requires to plug in the power supply, turn on the power switch and it will be charged automatically. There is no need for manual supervision throughout the whole process, and the power is automatically stopped when it is full-charged. The charging time is faster than the traditional model while the efficiency is twice that of the traditional model. The most advanced electronic charger in the domestic.

Be sure to distinguish the "+" and "-" poles when using the charger machine, which is available for 24V, 200AH -300AH lead-acid batteries. Do not use the way of charging connection to start the engine, which is easy to burn out the meter and motor. The correct sequence is to first connect the battery connector, then connect into the 110V or 220V power plug, turn on the power switch, confirm that the ground wire is connected reliably and there is no looseness, and finally connect the power plug into the power supply. If over-temperature is detected, the fault light will come on and the device will stop working automatically. Avoid the entry of water or vapor into the machine, and in such cases, dry the inside.

Should be put back into the original box and stored in a dry environment if not used for a long time. EM160 24V Smart Fast Charger is a fully automatic smart fast charging equipment.

All that needeofor the entire operation is to simply plugin and turn on the power switch, and itwill automatically charge. No manual supervision is required throughout the process, and the charging will automatically stop when it is full. The operation of the machine should be carried out in a relatively dry environment, and the air humidity should not exceed 90 % in general. The ambient temperature should be between -10? Avoid operating in strong sunlight or rain, and do not allow water or rain to seep into the machine.

Avoid working in dusty areas or environments containing corrosive gases. Avoid operating in an environment with strong air flow. Rated input power: 1.32KW.

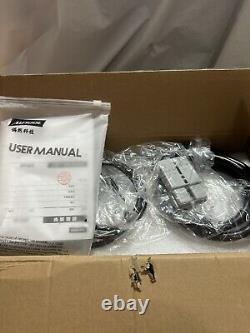

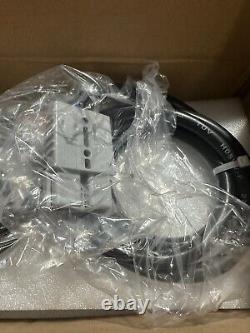

1 Golf Cart Smart Battery Charger. 1 High Amps Battery Quick Connector. Step 1: Firstly connect the battery connector. Step 2: Then plug it into 110V power supply.

Step 3: Turn on the power switch. Step 4: The machine will output current and voltage after self-checking for 3-4S. Step 5: The digital display shows the current and voltage, the charging indicator light is on (red). Step 6: When the battery is fully charged, the full indicator lights (green). Step 7: After charging is completed, turn off the power switch. Step 8: Then unplug the power supply plug, and finally unplug the battery connector.
